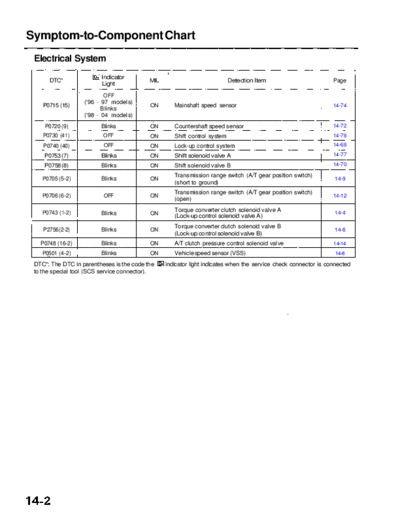

Image preview - the first page of the document
>> Download RL9604C14002A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Symptom-to-Component Chart
Electrical System
DTC* Indicator MIL Detection Item Page
Light
OFF
('96 - 97 models)
P0715 (15) ON Mainshaft speed sensor 14-74
Blinks
('98 - 04 models)
P0720 (9) Blinks ON Countershaft speed sensor 14-72
P0730 (41) OFF ON Shift control system 14-78
P0740 (40) OFF ON Lock-up control system 14-68
P0753 (7) Blinks ON Shift solenoid valve A 14-77
P0758 (8) Blinks ON Shift solenoid valve B 14-70
Transmission range switch (A/T gear position switch)
P0705 (5-2) Blinks ON 14-9
(short to ground)
Transmission range switch (A/T gear position switch)
P0706 (6-2) OFF ON 14-12
(open)
Torque converter clutch solenoid valve A
P0743 (1-2) Blinks ON 14-4
(Lock-up control solenoid valve A)
Torque converter clutch solenoid valve B
P2756(2-2) Blinks ON 14-6
(Lock-up control solenoid valve B)
P0748 (16-2) Blinks ON A/T clutch pressure control solenoid valve 14-14
P0501 (4-2) Blinks ON Vehicle speed sensor (VSS) 14-8
DTC*: The DTC in parentheses is the code the indicator light indicates when the service check connector is connected
to the special tool (SCS service connector).
Main Menu Table of Contents
If the self-diagnostic indicator light does not blink, perform an inspection according to the table below.
Symptom Inspection Ref. page
indicator light does not come on for two seconds after ignition
14-79
switch is first turned on (II).
indicator light is on constantly (not blinking) whenever the ignition
14-81
switch is on (II).
Shift lever cannot be moved from position with the brake pedal Check interlock system
14-82
pressed. -shift lock system
Ignition key cannot be moved from ACC (1) position to LOCK (0) position Check interlock system 14-84
while pushing the ignition key with the shift lever is in position. -key interlock system
