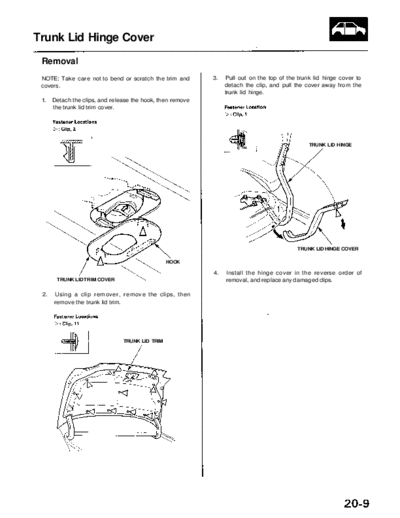

Image preview - the first page of the document
>> Download RL9604C20009A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Trunk Lid Hinge Cover
Removal
NOTE: Take care not to bend or scratch the trim and 3. Pull out on the top of the trunk lid hinge cover to
covers. detach the clip, and pull the cover away from the
trunk lid hinge.
1. Detach the clips, and release the hook, then remove
the trunk lid trim cover.
TRUNK LID HINGE
TRUNK LID HINGE COVER
HOOK
4. Install the hinge cover in the reverse order of
TRUNK LID TRIM COVER removal, and replace any damaged clips.
2. Using a clip remover, remove the clips, then
remove the trunk lid trim.
TRUNK LID TRIM
