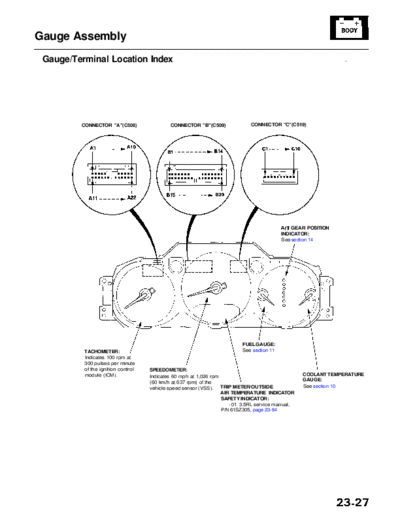

Image preview - the first page of the document
>> Download RL9604C23027A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Gauge Assembly
Gauge/Terminal Location Index
CONNECTOR "A"(C508) CONNECTOR "B"(C509) CONNECTOR "C"(C519)
A/T GEAR POSITION
INDICATOR:
See section 14
FUEL GAUGE:
TACHOMETER: See section 11
Indicates 100 rpm at
300 pulses per minute
of the ignition control SPEEDOMETER:
module (ICM). Indicates 60 mph at 1,026 rpm COOLANT TEMPERATURE
(60 km/h at 637 rpm) of the GAUGE:
vehicle speed sensor (VSS). TRIP METER/OUTSIDE See section 10
AIR TEMPERATURE INDICATOR
SAFETY INDICATOR:
'96 - 01 3.5RL service manual,
P/N 61SZ305, page 23-84
