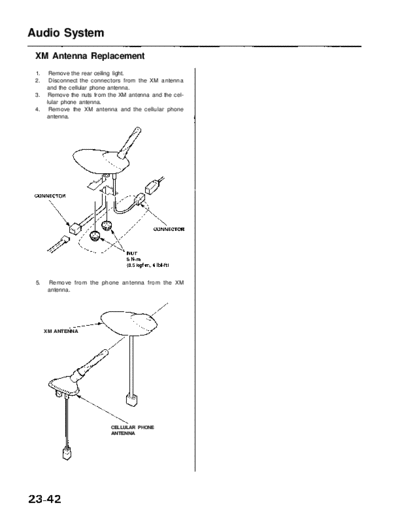

Image preview - the first page of the document
RL9604C23042A


>> Download RL9604C23042A documenatation <<

Text preview - extract from the document
               Main Menu               Table of Contents

Audio System
 XM Antenna Replacement
 1.    Remove the rear ceiling light.
 2.    Disconnect the connectors from the XM antenna
      and the cellular phone antenna.
 3.   Remove the nuts from the XM antenna and the cel-
      lular phone antenna.
 4.    Remove the XM antenna and the cellular phone
      antenna.




 5.    Remove from the phone antenna from the XM
       antenna.




      XM ANTENNA




                            CELLULAR PHONE
                            ANTENNA
