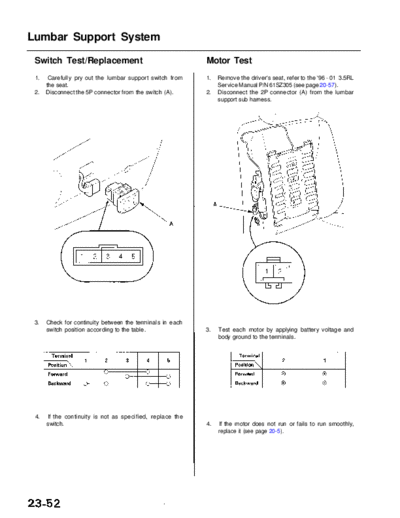

Image preview - the first page of the document



>> Download RL9604C23052A documenatation <<

Text preview - extract from the document

                Main Menu               Table of Contents


Lumbar Support System

 Switch Test/Replacement                                    Motor Test
 1.    Carefully pry out the lumbar support switch from     1.   Remove the driver's seat, refer to the '96 - 01 3.5RL
      the seat.                                                  Service Manual P/N 61SZ305 (see page 20-57).
 2.   Disconnect the 5P connector from the switch (A).      2.   Disconnect the 2P connector (A) from the lumbar
                                                                 support sub harness.




 3.   Check for continuity between the terminals in each
      switch position according to the table.               3.   Test each motor by applying battery voltage and
                                                                 body ground to the terminals.




 4.   If the continuity is not as specified, replace the
      switch.                                               4.   If the motor does not run or fails to run smoothly,
                                                                 replace it (see page 20-5).
