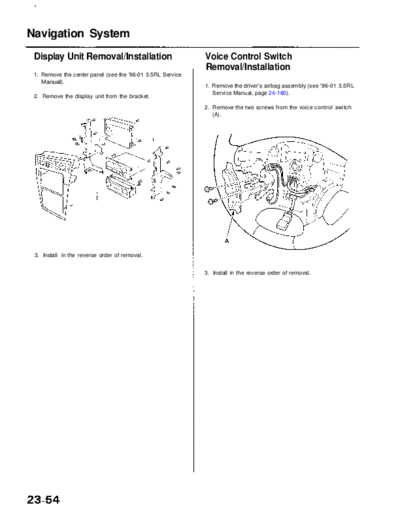

Image preview - the first page of the document
RL9604D23054A


>> Download RL9604D23054A documenatation <<

Text preview - extract from the document
              Main Menu                 Table of Contents


Navigation System
 Display Unit Removal/Installation                          Voice Control Switch
                                                            Removal/Installation
 1. Remove the center panel (see the '96-01 3.5RL Service
    Manual).
                                                            1. Remove the driver's airbag assembly (see '96-01 3.5RL
                                                               Service Manual, page 24-160).
 2. Remove the display unit from the bracket.
                                                            2. Remove the two screws from the voice control switch
                                                               (A).




 3. Install in the reverse order of removal.


                                                            3. Install in the reverse order of removal.
