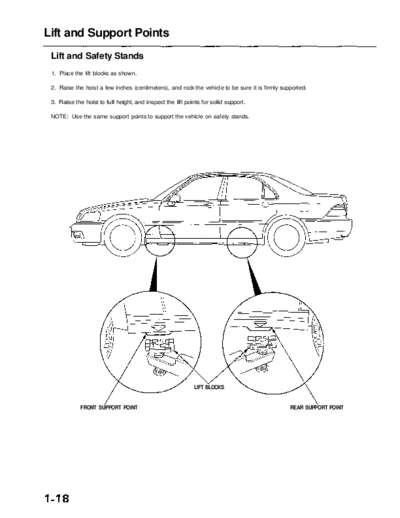

Image preview - the first page of the document
RL9604S01018A


>> Download RL9604S01018A documenatation <<

Text preview - extract from the document
          Main Menu                   Table of Contents

Lift and Support Points
 Lift and Safety Stands
 1. Place the lift blocks as shown.

 2. Raise the hoist a few inches (centimeters), and rock the vehicle to be sure it is firmly supported.

 3. Raise the hoist to full height, and inspect the lift points for solid support.

 NOTE: Use the same support points to support the vehicle on safety stands.




                                                            LIFT BLOCKS


             FRONT SUPPORT POINT                                                                REAR SUPPORT POINT
