Service Manuals, User Guides, Schematic Diagrams or docs for : . Car Manuals Acura 3.5RL 1996-2004 Approved srm RL9604S01019A

<< Back | Home

Most service manuals and schematics are PDF files, so You will need Adobre Acrobat Reader to view : Acrobat Download Some of the files are DjVu format. Readers and resources available here : DjVu Resources
For the compressed files, most common are zip and rar. Please, extract files with Your favorite compression software ( WinZip, WinRAR ... ) before viewing. If a document has multiple parts, You should download all, before extracting.
Good luck. Repair on Your own risk. Make sure You know what You are doing.

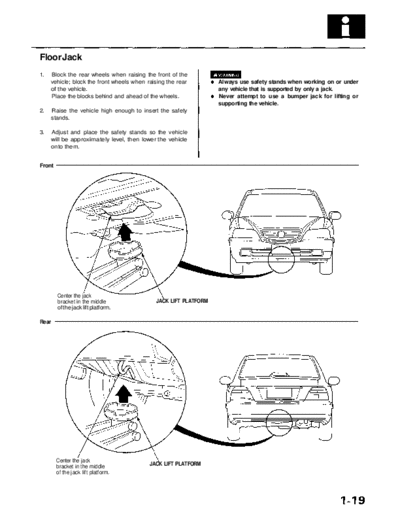

Image preview - the first page of the document



>> Download RL9604S01019A documenatation <<

Text preview - extract from the document

                Main Menu              Table of Contents




Floor Jack
1.   Block the rear wheels when raising the front of the
     vehicle; block the front wheels when raising the rear         Always use safety stands when working on or under
     of the vehicle.                                               any vehicle that is supported by only a jack.
     Place the blocks behind and ahead of the wheels.              Never attempt to use a bumper jack for lifting or
                                                                   supporting the vehicle.
2.     Raise the vehicle high enough to insert the safety
       stands.

3.   Adjust and place the safety stands so the vehicle
     will be approximately level, then lower the vehicle
     onto them.


Front




         Center the jack
         bracket in the middle                JACK LIFT PLATFORM
         of the jack lift platform.

Rear




        Center the jack
        bracket in the middle              JACK LIFT PLATFORM
        of the jack lift platform.
