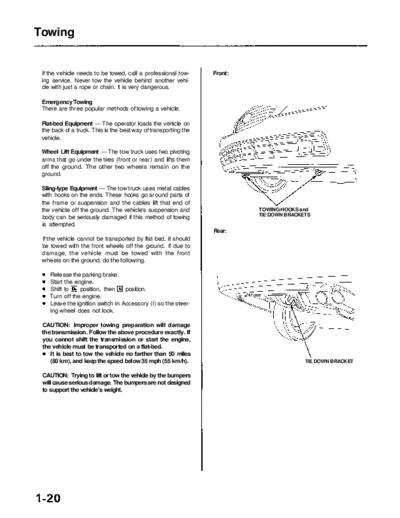

Image preview - the first page of the document



>> Download RL9604S01020A documenatation <<

Text preview - extract from the document

              Main Menu                  Table of Contents

Towing


 If the vehicle needs to be towed, call a professional tow-      Front:
 ing service. Never tow the vehicle behind another vehi-
 cle with just a rope or chain. It is very dangerous.

 Emergency Towing
 There are three popular methods of towing a vehicle.

 Flat-bed Equipment -- The operator loads the vehicle on
 the back of a truck. This is the best way of transporting the
 vehicle.

 Wheel Lift Equipment -- The tow truck uses two pivoting
 arms that go under the tires (front or rear) and lifts them
 off the ground. The other two wheels remain on the
 ground.

 Sling-type Equipment -- The tow truck uses metal cables
 with hooks on the ends. These hooks go around parts of
 the frame or suspension and the cables lift that end of
 the vehicle off the ground. The vehicle's suspension and                 TOWING HOOKS and
 body can be seriously damaged if this method of towing                   TIE DOWN BRACKETS
 is attempted.
                                                                 Rear:
 If the vehicle cannot be transported by flat-bed, it should
 be towed with the front wheels off the ground. If due to
 damage, the vehicle must be towed with the front
 wheels on the ground, do the following.

    Release the parking brake.
    Start the engine.
    Shift to    position, then    position.
    Turn off the engine.
    Leave the ignition switch in Accessory (I) so the steer-
    ing wheel does not look.

 CAUTION: Improper towing preparation will damage
 the transmission. Follow the above procedure exactly. If
 you cannot shift the transmission or start the engine,
 the vehicle must be transported on a flat-bed.
    It is best to tow the vehicle no farther than 50 miles
    (80 km), and keep the speed below 35 mph (55 km/h).                                  TIE DOWN BRACKET

 CAUTION: Trying to lift or tow the vehicle by the bumpers
 will cause serious damage. The bumpers are not designed
 to support the vehicle's weight.
