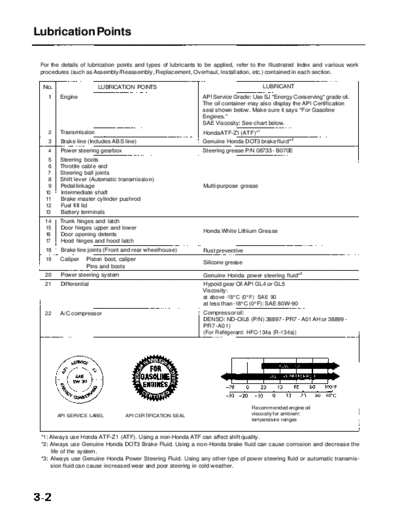

Image preview - the first page of the document



>> Download RL9604S03002A documenatation <<

Text preview - extract from the document

              Main Menu                    Table of Contents

Lubrication Points

 For the details of lubrication points and types of lubricants to be applied, refer to the Illustrated Index and various work
 procedures (such as Assembly/Reassembly, Replacement, Overhaul, Installation, etc.) contained in each section.

  No.                   LUBRICATION POINTS                                             LUBRICANT
    1    Engine                                                 API Service Grade: Use SJ "Energy Conserving" grade oil.
                                                                The oil container may also display the API Certification
                                                                seal shown below. Make sure it says "For Gasoline
                                                                Engines."
                                                                SAE Viscosity: See chart below.
    2    Transmission                                           Honda ATF-Z1 (ATF)*1
    3    Brake line (Includes ABS line)                         Genuine Honda DOT3 brake fluid*2
    4    Power steering gearbox                                 Steering grease P/N 08733 - B070E
    5    Steering boots
    6    Throttle cable end
   7     Steering ball joints
    8    Shift lever (Automatic transmission)
    9    Pedal linkage                                          Multi-purpose grease
   10    Intermediate shaft
   11    Brake master cylinder pushrod
   12    Fuel fill lid
   13    Battery terminals
  14     Trunk hinges and latch
  15     Door hinges upper and lower
                                                                Honda White Lithium Grease
  16     Door opening detents
  17     Hood hinges and hood latch
   18    Brake line joints (Front and rear wheelhouse)          Rust preventive
   19    Caliper    Piston boot, caliper
                                                                Silicone grease
                    Pins and boots
  20     Power steering system                                  Genuine Honda power steering fluid*3
  21     Differential                                           Hypoid gear Oil API GL4 or GL5
                                                                Viscosity:
                                                                at above -18
