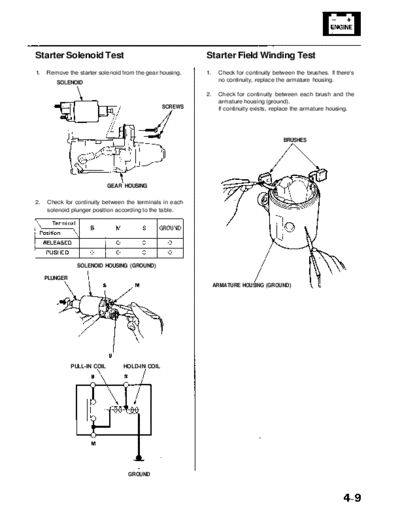

Image preview - the first page of the document



>> Download RL9604S04009A documenatation <<

Text preview - extract from the document

                Main Menu              Table of Contents




Starter Solenoid Test                                      Starter Field Winding Test
1.   Remove the starter solenoid from the gear housing.    1.    Check for continuity between the brushes. If there's
        SOLENOID                                                 no continuity, replace the armature housing.

                                                           2.    Check for continuity between each brush and the
                                                                 armature housing (ground).
                                                 SCREWS          If continuity exists, replace the armature housing.




                                                                                         BRUSHES




                              GEAR HOUSING

2.   Check for continuity between the terminals in each
     solenoid plunger position according to the table.




                 SOLENOID HOUSING (GROUND)

     PLUNGER
                                                                ARMATURE HOUSING (GROUND)




               PULL-IN COIL       HOLD-IN COIL




                                    GROUND
