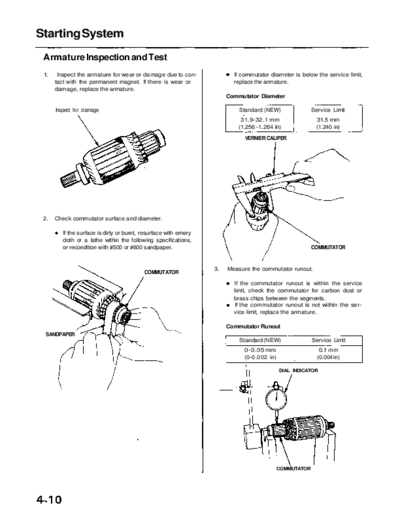

Image preview - the first page of the document



>> Download RL9604S04010A documenatation <<

Text preview - extract from the document

             Main Menu                   Table of Contents


Starting System
 Armature Inspection and Test
 1.    Inspect the armature for wear or damage due to con-               If commutator diameter is below the service limit,
      tact with the permanent magnet. If there is wear or                replace the armature.
      damage, replace the armature.
                                                                       Commutator Diameter

      Inspect for damage                                                   Standard (NEW)              Service Limit
                                                                            31.9-32.1 mm                 31.5 mm
                                                                           (1.256 -1.264 in)             (1.240 in)

                                                                             VERNIER CALIPER




 2.   Check commutator surface and diameter.

         If the surface is dirty or burnt, resurface with emery
         cloth or a lathe within the following specifications,
         or recondition with #500 or #600 sandpaper.                                                   COMMUTATOR


                                                                  3.   Measure the commutator runout.
                                           COMMUTATOR

                                                                         If the commutator runout is within the service
                                                                         limit, check the commutator for carbon dust or
                                                                         brass chips between the segments.
                                                                         If the commutator runout is not within the ser-
                                                                         vice limit, replace the armature.

                                                                       Commutator Runout
  SANDPAPER
                                                                           Standard (NEW)              Service Limit
                                                                             0-0.05 mm                    0.1 mm
                                                                             (0-0.002 in)                (0.004 in)

                                                                                            DIAL INDICATOR




                                                                                          COMMUTATOR
               Main Menu               Table of Contents




4.   Check for mica depth. If necessary, undercut the mica   6.   Place the armature on an armature tester. Hold a
     with a hacksaw blade to achieve proper depth. If the         hacksaw blade on the armature core. If the blade is
     service limit cannot be maintained, replace the arma-        attracted to the core or vibrates while the core is
     ture.                                                        turned, the armature is shorted. Replace the arma-
                                                                  ture.

        HIGH
        MICA         NO-GOOD                                         ARMATURE TESTER
                                   GOOD                                                       HACKSAW BLADE


                                          MICA DEPTH




     Commutator Mica Depth

          Standard (NEW)              Service Limit
            0.5-0.8 mm                  0.20 mm
          (0.020-0.031 in)              (0.008 in)
                                                                               ARMATURE
5.   Check for continuity between the segments of the
     commutator. If an open circuit exists between any
     segments, replace the armature.                         7.    With an ohmmeter, check that no continuity exists
                                                                  between the commutator and armature coil core,
                                                                  and between the commutator and armature shaft. If
                                                                  there is continuity, replace the armature.
                                COMMUTATOR SEGMENT




                                                                   SHAFT          COIL CORE        COMMUTATOR
