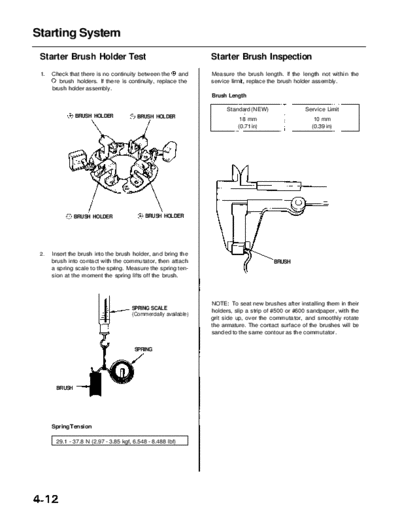

Image preview - the first page of the document
>> Download RL9604S04012A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Starting System
Starter Brush Holder Test Starter Brush Inspection
1. Check that there is no continuity between the and Measure the brush length. If the length not within the
brush holders. If there is continuity, replace the service limit, replace the brush holder assembly.
brush holder assembly.
Brush Length
Standard (NEW) Service Limit
BRUSH HOLDER BRUSH HOLDER
18 mm 10 mm
(0.71 in) (0.39 in)
BRUSH HOLDER BRUSH HOLDER
2. Insert the brush into the brush holder, and bring the
brush into contact with the commutator, then attach BRUSH
a spring scale to the spring. Measure the spring ten-
sion at the moment the spring lifts off the brush.
NOTE: To seat new brushes after installing them in their
SPRING SCALE holders, slip a strip of #500 or #600 sandpaper, with the
(Commercially available)
grit side up, over the commutator, and smoothly rotate
the armature. The contact surface of the brushes will be
sanded to the same contour as the commutator.
SPRING
BRUSH
Spring Tension
29.1 - 37.8 N (2.97 - 3.85 kgf, 6.548 - 8.488 Ibf)
