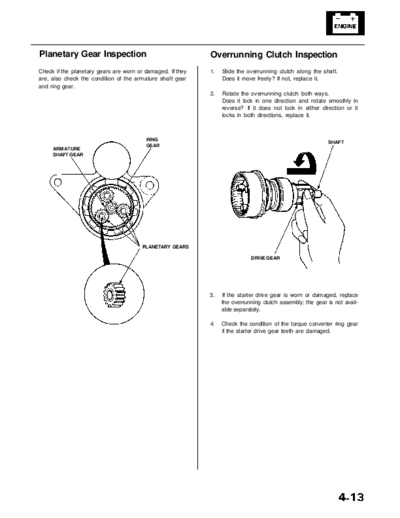

Image preview - the first page of the document



>> Download RL9604S04013A documenatation <<

Text preview - extract from the document

             Main Menu                Table of Contents




Planetary Gear Inspection                                   Overrunning Clutch Inspection
Check if the planetary gears are worn or damaged. If they   1.   Slide the overrunning clutch along the shaft.
are, also check the condition of the armature shaft gear         Does it move freely? If not, replace it.
and ring gear.
                                                            2.   Rotate the overrunning clutch both ways.
                                                                 Does it lock in one direction and rotate smoothly in
                                                                 reverse? If it does not lock in either direction or it
                                                                 locks in both directions, replace it.



                                         RING
                                                                                                            SHAFT
                                         GEAR
     ARMATURE
     SHAFT GEAR




                                       PLANETARY GEARS

                                                                            DRIVE GEAR




                                                            3.   If the starter drive gear is worn or damaged, replace
                                                                 the overrunning clutch assembly; the gear is not avail-
                                                                 able separately.

                                                            4.   Check the condition of the torque converter ring gear
                                                                 if the starter drive gear teeth are damaged.
