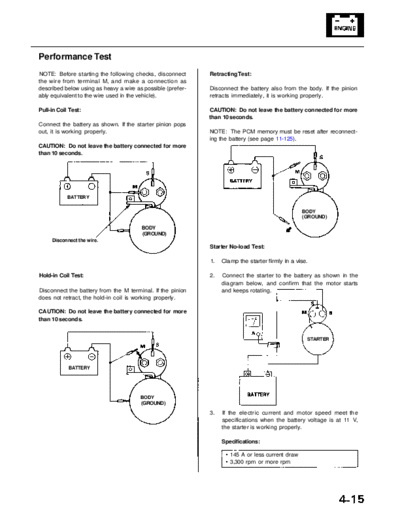

Image preview - the first page of the document



>> Download RL9604S04015A documenatation <<

Text preview - extract from the document

              Main Menu                Table of Contents




Performance Test
NOTE: Before starting the following checks, disconnect       Retracting Test:
the wire from terminal M, and make a connection as
described below using as heavy a wire as possible (prefer-   Disconnect the battery also from the body. If the pinion
ably equivalent to the wire used in the vehicle).            retracts immediately, it is working properly.

Pull-in Coil Test:                                           CAUTION: Do not leave the battery connected for more
                                                             than 10 seconds.
Connect the battery as shown. If the starter pinion pops
out, it is working properly.                                 NOTE: The PCM memory must be reset after reconnect-
                                                             ing the battery (see page 11-125).
CAUTION: Do not leave the battery connected for more
than 10 seconds.




            BATTERY


                                                                                                  BODY
                                                                                                  (GROUND)

                                        BODY
                                        (GROUND)
     Disconnect the wire.
                                                             Starter No-load Test:

                                                             1.   Clamp the starter firmly in a vise.

Hold-in Coil Test:                                           2.   Connect the starter to the battery as shown in the
                                                                  diagram below, and confirm that the motor starts
Disconnect the battery from the M terminal. If the pinion         and keeps rotating.
does not retract, the hold-in coil is working properly.

CAUTION: Do not leave the battery connected for more
than 10 seconds.


                                                                                                    STARTER




            BATTERY




                                        BODY
                                        (GROUND)
                                                             3.   If the electric current and motor speed meet the
                                                                  specifications when the battery voltage is at 11 V,
                                                                  the starter is working properly.

                                                                  Specifications:

                                                                     145 A or less current draw
                                                                     3,300 rpm or more rpm
