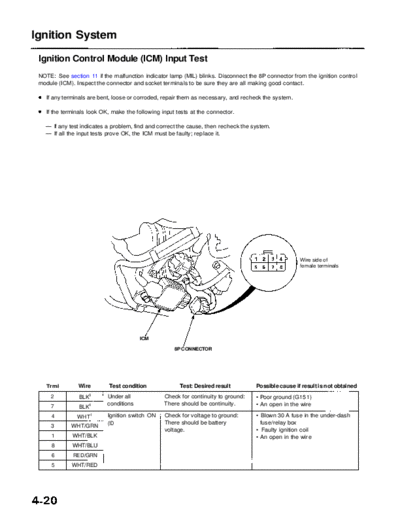

Image preview - the first page of the document



>> Download RL9604S04020A documenatation <<

Text preview - extract from the document

              Main Menu                  Table of Contents


Ignition System

 Ignition Control Module (ICM) Input Test
 NOTE: See section 11 if the malfunction indicator lamp (MIL) blinks. Disconnect the 8P connector from the ignition control
 module (ICM). Inspect the connector and socket terminals to be sure they are all making good contact.

    If any terminals are bent, loose or corroded, repair them as necessary, and recheck the system.

    If the terminals look OK, make the following input tests at the connector.

   -- If any test indicates a problem, find and correct the cause, then recheck the system.
   -- If all the input tests prove OK, the ICM must be faulty; replace it.




                                                                                                      Wire side of
                                                                                                      female terminals




                                         ICM

                                                       8P CONNECTOR




    Trml        Wire        Test condition               Test: Desired result        Possible cause if result is not obtained
                    3
     2          BLK         Under all              Check for continuity to ground:
