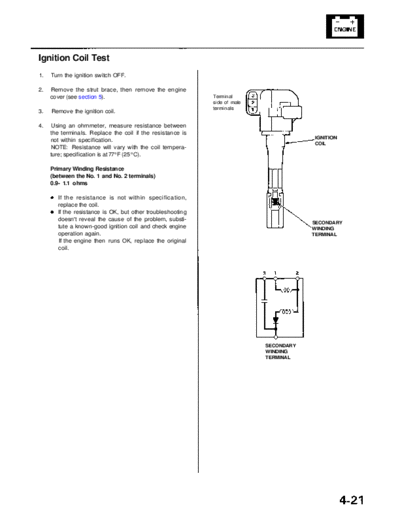

Image preview - the first page of the document



>> Download RL9604S04021A documenatation <<

Text preview - extract from the document

             Main Menu                 Table of Contents




Ignition Coil Test
1.   Turn the ignition switch OFF.

2.   Remove the strut brace, then remove the engine
     cover (see section 5).                                 Terminal
                                                            side of male
                                                            terminals
3.   Remove the ignition coil.

4.   Using an ohmmeter, measure resistance between
     the terminals. Replace the coil if the resistance is
                                                                                       IGNITION
     not within specification.
                                                                                       COIL
     NOTE: Resistance will vary with the coil tempera-
     ture; specification is at 77
