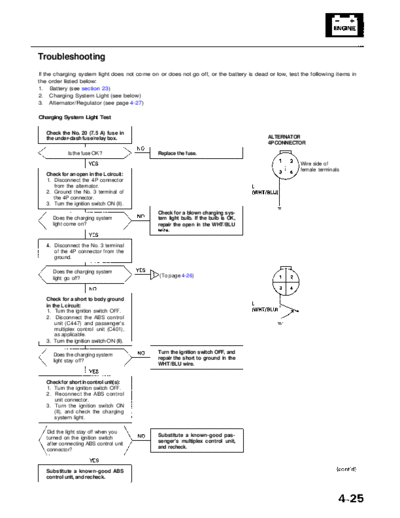

Image preview - the first page of the document



>> Download RL9604S04025A documenatation <<

Text preview - extract from the document

               Main Menu                  Table of Contents




Troubleshooting
If the charging system light does not come on or does not go off, or the battery is dead or low, test the following items in
the order listed below:
1. Battery (see section 23)
2. Charging System Light (see below)
3. Alternator/Regulator (see page 4-27)

Charging System Light Test


   Check the No. 20 (7.5 A) fuse in
   the under-dash fuse/relay box.                                                        ALTERNATOR
                                                                                         4P CONNECTOR

             Is the fuse OK?                     Replace the fuse.
                                                                                                      Wire side of
                                                                                                      female terminals
   Check for an open in the L circuit:
   1. Disconnect the 4P connector
      from the alternator.
   2. Ground the No. 3 terminal of
      the 4P connector.
   3. Turn the ignition switch ON (II).
                                                 Check for a blown charging sys-
      Does the charging system                   tem light bulb. If the bulb is OK,
      light come on?                             repair the open in the WHT/BLU



      Disconnect the No. 3 terminal
      of the 4P connector from the
      ground.

      Does the charging system
      light go off?                               (To page 4-26)



   Check for a short to body ground
   in the L circuit:
   1. Turn the ignition switch OFF.
   2. Disconnect the ABS control
       unit (C447) and passenger's
       multiplex control unit (C401),
       as applicable.
   3. Turn the ignition switch ON (II).

                                                 Turn the ignition switch OFF, and
      Does the charging system
                                                 repair the short to ground in the
      light stay off?
                                                 WHT/BLU wire.


   Check for short in control unit(s):
   1. Turn the ignition switch OFF.
   2. Reconnect the ABS control
      unit connector.
   3. Turn the ignition switch ON
      (II), and check the charging
      system light.

   Did the light stay off when you
                                                 Substitute a known-good pas-
   turned on the ignition switch
                                                 senger's multiplex control unit,
   after connecting ABS control unit
                                                 and recheck.
   connector?



   Substitute a known-good ABS
   control unit, and recheck.
             Main Menu                   Table of Contents


Charging System
 Troubleshooting (cont'd)
          (From page 4-25)




  Check for an open in the IG circuit:
  Measure the voltage at the No. 1
  terminal of the 4P connector.

                                                                                       ALTERNATOR
                                                 Turn the ignition switch OFF, and     4P CONNECTOR
       Is there battery voltage?                 repair the open circuit in the BLK/
                                                 YEL wire.

                                                                                                 Wire side of
  Check the Alternator/Regulator:                                                                female terminals
  1. Turn the ignition switch OFF.
  2. Connect the 4P connector to
     the alternator.
  3. Turn the ignition switch ON
     (II).



     Does the charging system                    Check the alternator/regulator
     light come on?                              (see page 4-27).



  4. Start the engine.



     Does the charging system                    Check the alternator/regulator
     light go off?                               (see page 4-27).



  The charging system light circuit
  is OK.
