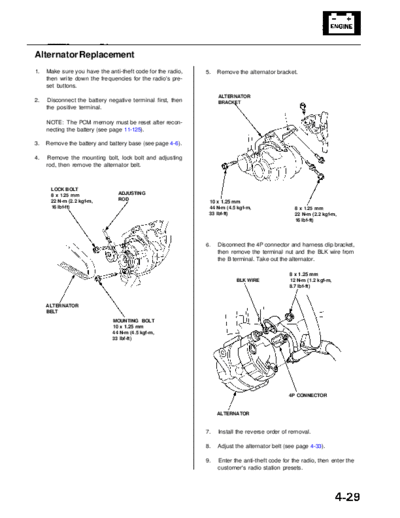

Alternator Replacement
1.   Make sure you have the anti-theft code for the radio,   5.   Remove the alternator bracket.
     then write down the frequencies for the radio's pre-
     set buttons.
                                                                  ALTERNATOR
2.    Disconnect the battery negative terminal first, then        BRACKET
     the positive terminal.

     NOTE: The PCM memory must be reset after recon-
     necting the battery (see page 11-125).

3.   Remove the battery and battery base (see page 4-6).

4.   Remove the mounting bolt, lock bolt and adjusting
     rod, then remove the alternator belt.



      LOCK BOLT
      8 x 1.25 mm               ADJUSTING
      22 N-m (2.2 kgf-m,        ROD
                                                              10 x 1.25 mm
      16 Ibf-ft)                                              44 N-m (4.5 kgf-m,                 8 x 1.25 mm
                                                              33 Ibf-ft)                         22 N-m (2.2 kgf-m,
                                                                                                 16 Ibf-ft)




                                                             6.   Disconnect the 4P connector and harness clip bracket,
                                                                  then remove the terminal nut and the BLK wire from
                                                                  the B terminal. Take out the alternator.

                                                                                               8 x 1.25 mm
                                                                         BLK WIRE              12 N-m (1.2 kgf-m,
                                                                                               8.7 Ibf-ft)



     ALTERNATOR
     BELT
                              MOUNTING BOLT
                              10 x 1.25 mm
                              44 N-m (4.5 kgf-m,
                              33 Ibf-ft)




                                                                                              4P CONNECTOR


                                                                  ALTERNATOR


                                                             7.   Install the reverse order of removal.

                                                             8.   Adjust the alternator belt (see page 4-33).

                                                             9.   Enter the anti-theft code for the radio, then enter the
                                                                  customer's radio station presets.
