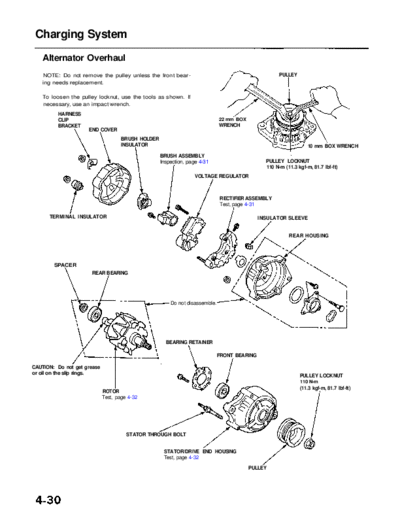

               Main Menu                       Table of Contents


 Charging System
    Alternator Overhaul
    NOTE: Do not remove the pulley unless the front bear-                                                PULLEY
    ing needs replacement.

    To loosen the pulley locknut, use the tools as shown. If
    necessary, use an impact wrench.
          HARNESS
          CLIP                                                                   22 mm BOX
          BRACKET                                                                WRENCH
                     END COVER
                                     BRUSH HOLDER
                                     INSULATOR                                                                        10 mm BOX WRENCH
                                                       BRUSH ASSEMBLY
                                                       Inspection, page 4-31                       PULLEY LOCKNUT
                                                                                                   110 N-m (11.3 kgf-m, 81.7 Ibf-ft)
                                                                     VOLTAGE REGULATOR



                                                                                 RECTIFIER ASSEMBLY
                                                                                 Test, page 4-31

      TERMINAL INSULATOR                                                                         INSULATOR SLEEVE


                                                                                                             REAR HOUSING




        SPACER
                      REAR BEARING




                                                           Do not disassemble.




                                                         BEARING RETAINER

                                                                                 FRONT BEARING

CAUTION: Do not get grease
or oil on the slip rings.
                                                                                                                  PULLEY LOCKNUT
                                                                                                                  110 N-m
                                                                                                                  (11.3 kgf-m, 81.7 Ibf-ft)
                             ROTOR
                             Test, page 4-32




                                       STATOR THROUGH BOLT


                                                        STATOR/DRIVE END HOUSING
                                                        Test, page 4-32

                                                                                             PULLEY
