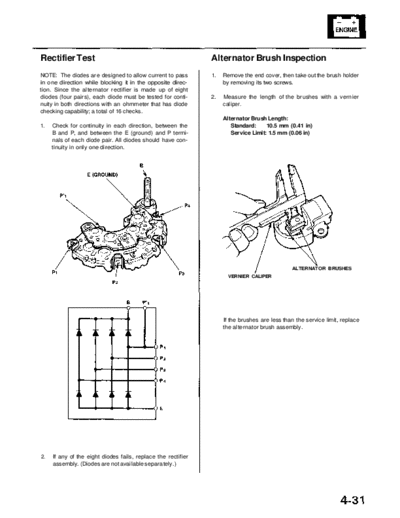

Image preview - the first page of the document



>> Download RL9604S04031A documenatation <<

Text preview - extract from the document

             Main Menu                  Table of Contents




Rectifier Test                                                 Alternator Brush Inspection
NOTE: The diodes are designed to allow current to pass         1.   Remove the end cover, then take out the brush holder
in one direction while blocking it in the opposite direc-           by removing its two screws.
tion. Since the alternator rectifier is made up of eight
diodes (four pairs), each diode must be tested for conti-      2.   Measure the length of the brushes with a vernier
nuity in both directions with an ohmmeter that has diode            caliper.
checking capability; a total of 16 checks.
                                                                    Alternator Brush Length:
1.   Check for continuity in each direction, between the               Standard:     10.5 mm (0.41 in)
     B and P, and between the E (ground) and P termi-                  Service Limit: 1.5 mm (0.06 in)
     nals of each diode pair. All diodes should have con-
     tinuity in only one direction.




                                                                                               ALTERNATOR BRUSHES
                                                                      VERNIER CALIPER




                                                                    If the brushes are less than the service limit, replace
                                                                    the alternator brush assembly.




2.   If any of the eight diodes fails, replace the rectifier
     assembly. (Diodes are not available separately.)
