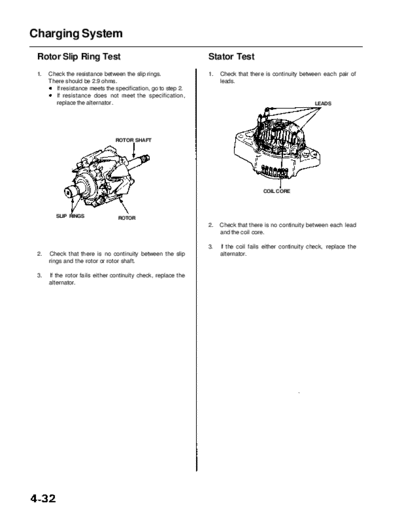

Image preview - the first page of the document
RL9604S04032A


>> Download RL9604S04032A documenatation <<

Text preview - extract from the document
                Main Menu                 Table of Contents


Charging System
 Rotor Slip Ring Test                                           Stator Test
 1.   Check the resistance between the slip rings.              1.   Check that there is continuity between each pair of
      There should be 2.9 ohms.                                      leads.
        If resistance meets the specification, go to step 2.
        If resistance does not meet the specification,
        replace the alternator.                                                                           LEADS




                                ROTOR SHAFT




                                                                                      COIL CORE



         SLIP RINGS              ROTOR
                                                                2.   Check that there is no continuity between each lead
                                                                     and the coil core.

                                                                3.   If the coil fails either continuity check, replace the
 2.   Check that there is no continuity between the slip             alternator.
      rings and the rotor or rotor shaft.

 3.   If the rotor fails either continuity check, replace the
      alternator.
