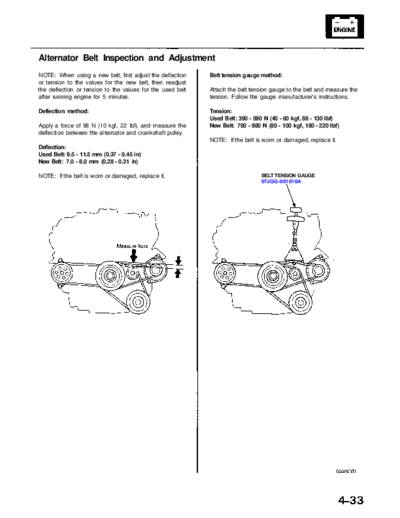

Image preview - the first page of the document



>> Download RL9604S04033A documenatation <<

Text preview - extract from the document

              Main Menu                 Table of Contents




Alternator Belt Inspection and Adjustment
NOTE: When using a new belt, first adjust the deflection    Belt tension gauge method:
or tension to the values for the new belt, then readjust
the deflection or tension to the values for the used belt   Attach the belt tension gauge to the belt and measure the
after running engine for 5 minutes.                         tension. Follow the gauge manufacturer's instructions.

Deflection method:                                          Tension:
                                                            Used Belt: 390 - 590 N (40 - 60 kgf, 88 - 130 Ibf)
Apply a force of 98 N (10 kgf, 22 Ibf), and measure the     New Belt: 780 - 980 N (80 - 100 kgf, 180 - 220 Ibf)
deflection between the alternator and crankshaft pulley.
                                                            NOTE: If the belt is worn or damaged, replace it.
Deflection:
Used Belt: 9.5 - 11.5 mm (0.37 - 0.45 in)
New Belt: 7.0 - 8.0 mm (0.28 - 0.31 in)

NOTE: If the belt is worn or damaged, replace it.                               BELT TENSION GAUGE
                                                                                07JGG-001010A
                Main Menu                 Table of Contents

Charging System
 Alternator Belt Inspection and
 Adjustment (cont'd)
 If adjustment is necessary:

 1.    Loosen the mounting bolt and the lock bolt.

 2.    Move the alternator by turning the adjusting rod to
       obtain the proper belt tension, then retighten the
       bolts.


          Looser                          Tighter




      ADJUSTING
      ROD




                                          LOCK BOLT
                                          8 x 1.25 mm
         MOUNTING BOLT                    22 N-m (2.2 kgf-m,
         10 x 1.25 mm                     16 Ibf-ft)
         44 N-m (4.5 kgf-m,
         33 Ibf-ft)



 3.    Recheck the deflection or tension of the belt.

       NOTE: For the power steering pump belt and A/C
       compressor belt adjustments, refer to section 17 and
       section 22.
