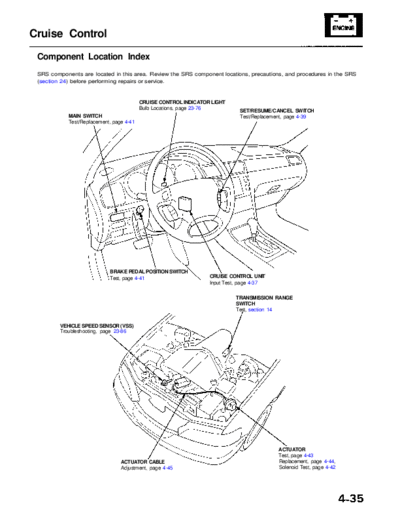

Image preview - the first page of the document



>> Download RL9604S04035A documenatation <<

Text preview - extract from the document

              Main Menu                   Table of Contents


Cruise Control
 Component Location Index
 SRS components are located in this area. Review the SRS component locations, precautions, and procedures in the SRS
 (section 24) before performing repairs or service.



                                          CRUISE CONTROL INDICATOR LIGHT
                                          Bulb Locations, page 23-76         SET/RESUME/CANCEL SWITCH
            MAIN SWITCH                                                      Test/Replacement, page 4-39
            Test/Replacement, page 4-41




                            BRAKE PEDAL POSITION SWITCH
                            Test, page 4-41                       CRUISE CONTROL UNIT
                                                                  Input Test, page 4-37

                                                                           TRANSMISSION RANGE
                                                                           SWITCH
                                                                           Test, section 14


         VEHICLE SPEED SENSOR (VSS)
         Troubleshooting, page 23-86




                                                                                           ACTUATOR
                                                                                           Test, page 4-43
                                 ACTUATOR CABLE                                            Replacement, page 4-44,
                                 Adjustment, page 4-45                                     Solenoid Test, page 4-42
