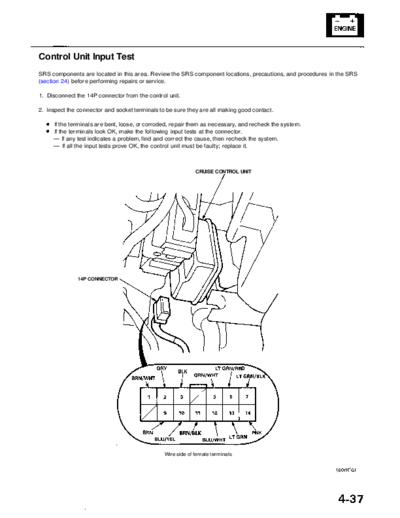

Image preview - the first page of the document



>> Download RL9604S04037A documenatation <<

Text preview - extract from the document

             Main Menu                Table of Contents




Control Unit Input Test
SRS components are located in this area. Review the SRS component locations, precautions, and procedures in the SRS
(section 24) before performing repairs or service.

1. Disconnect the 14P connector from the control unit.

2. Inspect the connector and socket terminals to be sure they are all making good contact.

     If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.
     If the terminals look OK, make the following input tests at the connector.
     -- If any test indicates a problem, find and correct the cause, then recheck the system.
     -- If all the input tests prove OK, the control unit must be faulty; replace it.



                                                             CRUISE CONTROL UNIT




               14P CONNECTOR




                                                Wire side of female terminals
              Main Menu                     Table of Contents

Cruise Control
 Control Unit Input Test (cont'd)
 Cavity     Wire               Test condition                       Test: Desired result                Possible cause if result is not obtained
                       Under all conditions               Check for continuity to ground:
