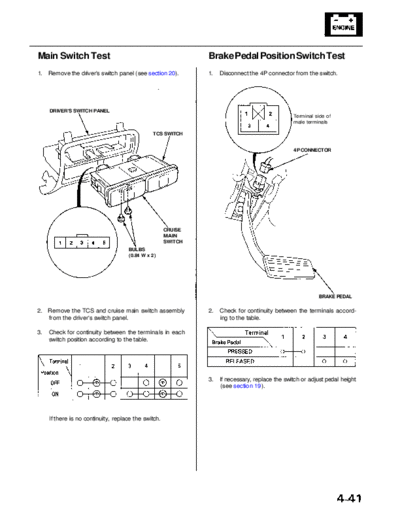

Image preview - the first page of the document



>> Download RL9604S04041A documenatation <<

Text preview - extract from the document

              Main Menu                   Table of Contents




Main Switch Test                                               Brake Pedal Position Switch Test
1.   Remove the driver's switch panel (see section 20).        1.   Disconnect the 4P connector from the switch.




     DRIVER'S SWITCH PANEL
                                                                                                 Terminal side of
                                                                                                 male terminals

                                               TCS SWITCH


                                                                                                 4P CONNECTOR




                                                      CRUISE
                                                      MAIN
                                                      SWITCH
                                     BULBS
                                     (0.84 W x 2)




                                                                                                           BRAKE PEDAL


2. Remove the TCS and cruise main switch assembly              2.   Check for continuity between the terminals accord-
   from the driver's switch panel.                                  ing to the table.

3.   Check for continuity between the terminals in each
     switch position according to the table.




                                                               3.   If necessary, replace the switch or adjust pedal height
                                                                     (see section 19).




     If there is no continuity, replace the switch.
