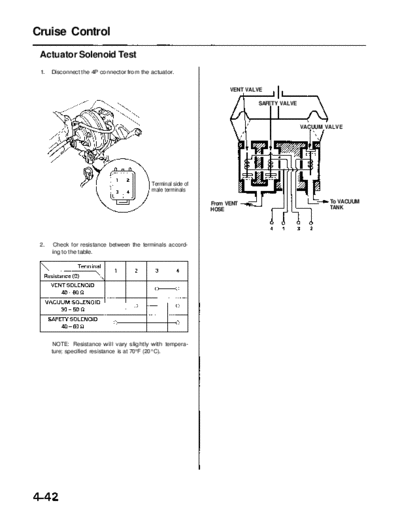

              Main Menu               Table of Contents

Cruise Control
 Actuator Solenoid Test
 1.   Disconnect the 4P connector from the actuator.


                                                                    VENT VALVE

                                                                            SAFETY VALVE



                                                                                           VACUUM VALVE




                                           Terminal side of
                                           male terminals

                                                              From VENT                            To VACUUM
                                                              HOSE                                 TANK




 2.    Check for resistance between the terminals accord-
      ing to the table.




      NOTE: Resistance will vary slightly with tempera-
      ture; specified resistance is at 70
