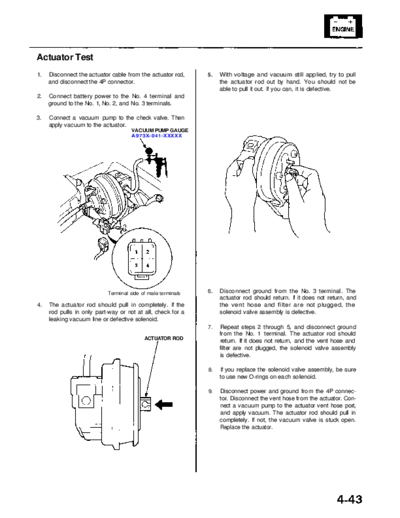

Image preview - the first page of the document
>> Download RL9604S04043A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Actuator Test
1. Disconnect the actuator cable from the actuator rod, 5. With voltage and vacuum still applied, try to pull
and disconnect the 4P connector. the actuator rod out by hand. You should not be
able to pull it out. If you can, it is defective.
2. Connect battery power to the No. 4 terminal and
ground to the No. 1, No. 2, and No. 3 terminals.
3. Connect a vacuum pump to the check valve. Then
apply vacuum to the actuator.
VACUUM PUMP GAUGE
A973X-041-XXXXX
Terminal side of male terminals 6. Disconnect ground from the No. 3 terminal. The
actuator rod should return. If it does not return, and
4. The actuator rod should pull in completely. If the the vent hose and filter are not plugged, the
rod pulls in only part-way or not at all, check for a solenoid valve assembly is defective.
leaking vacuum line or defective solenoid.
7. Repeat steps 2 through 5, and disconnect ground
from the No. 1 terminal. The actuator rod should
ACTUATOR ROD
return. If it does not return, and the vent hose and
filter are not plugged, the solenoid valve assembly
is defective.
8. If you replace the solenoid valve assembly, be sure
to use new O-rings on each solenoid.
9. Disconnect power and ground from the 4P connec-
tor. Disconnect the vent hose from the actuator. Con-
nect a vacuum pump to the actuator vent hose port,
and apply vacuum. The actuator rod should pull in
completely. If not, the vacuum valve is stuck open.
Replace the actuator.
