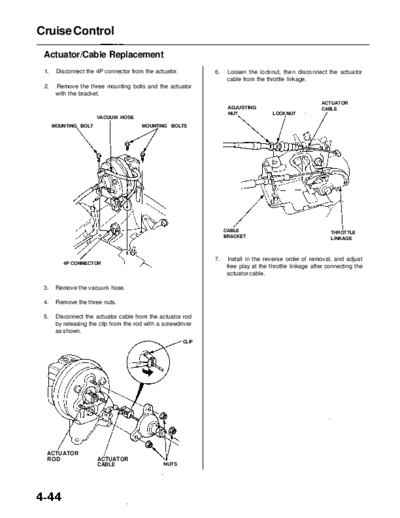

Image preview - the first page of the document



>> Download RL9604S04044A documenatation <<

Text preview - extract from the document

              Main Menu                Table of Contents

Cruise Control
 Actuator/Cable Replacement
 1.    Disconnect the 4P connector from the actuator.             6.    Loosen the locknut, then disconnect the actuator
                                                                        cable from the throttle linkage.
 2.    Remove the three mounting bolts and the actuator
       with the bracket.
                                                                                                            ACTUATOR
                                                                        ADJUSTING                           CABLE
                                                                        NUT              LOCKNUT
                       VACUUM HOSE
      MOUNTING BOLT                     MOUNTING BOLTS




                                                                       CABLE                                    THROTTLE
                                                                       BRACKET                                  LINKAGE



                                                                  7.   Install in the reverse order of removal, and adjust
          4P CONNECTOR
                                                                       free play at the throttle linkage after connecting the
                                                                       actuator cable.

 3.    Remove the vacuum hose.

 4.    Remove the three nuts.

 5.    Disconnect the actuator cable from the actuator rod
       by releasing the clip from the rod with a screwdriver
       as shown.
                                                           CLIP




  ACTUATOR
  ROD                  ACTUATOR
                       CABLE                     NUTS
