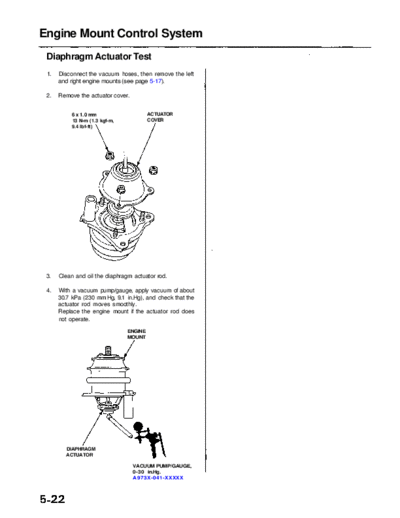

Text preview - extract from the document
           Main Menu                Table of Contents


Engine Mount Control System
 Diaphragm Actuator Test
 1.   Disconnect the vacuum hoses, then remove the left
      and right engine mounts (see page 5-17).

 2.   Remove the actuator cover.


           6 x 1.0 mm                    ACTUATOR
           13 N-m (1.3 kgf-m,            COVER
           9.4 Ibf-ft)




 3.   Clean and oil the diaphragm actuator rod.

 4.   With a vacuum pump/gauge, apply vacuum of about
      30.7 kPa (230 mm Hg, 9.1 in.Hg), and check that the
      actuator rod moves smoothly.
      Replace the engine mount if the actuator rod does
      not operate.

                                ENGINE
                                MOUNT




        DIAPHRAGM
        ACTUATOR

                                   VACUUM PUMP/GAUGE,
                                   0-30 in.Hg.
                                   A973X-041-XXXXX
