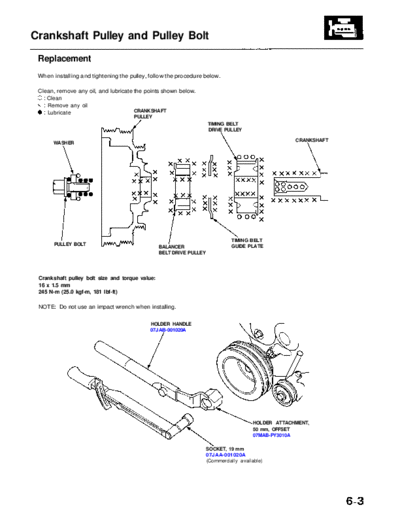

Image preview - the first page of the document
RL9604S06003A


>> Download RL9604S06003A documenatation <<

Text preview - extract from the document
              Main Menu                 Table of Contents


Crankshaft Pulley and Pulley Bolt
 Replacement
 When installing and tightening the pulley, follow the procedure below.

 Clean, remove any oil, and lubricate the points shown below.
    Clean
    Remove any oil
    Lubricate                         CRANKSHAFT
                                     PULLEY
                                                                     TIMING BELT
                                                                     DRIVE PULLEY

                                                                                                     CRANKSHAFT
      WASHER




                                                                               TIMING BELT
       PULLEY BOLT                                                             GUIDE PLATE
                                                 BALANCER
                                                 BELT DRIVE PULLEY




 Crankshaft pulley bolt size and torque value:
 16 x 1.5 mm
 245 N-m (25.0 kgf-m, 181 Ibf-ft)

 NOTE: Do not use an impact wrench when installing.


                                            HOLDER HANDLE
                                            07JAB-001020A




                                                                                        HOLDER ATTACHMENT,
                                                                                        50 mm, OFFSET
                                                                                        07MAB-PY3010A

                                                                     SOCKET, 19 mm
                                                                     07JAA-001020A
                                                                     (Commercially available)
