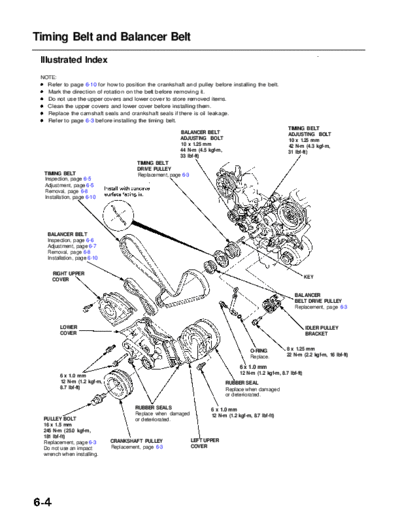

Timing Belt and Balancer Belt
 Illustrated Index
 NOTE:
   Refer to page 6-10 for how to position the crankshaft and pulley before installing the belt.
   Mark the direction of rotation on the belt before removing it.
   Do not use the upper covers and lower cover to store removed items.
   Clean the upper covers and lower cover before installing them.
   Replace the camshaft seals and crankshaft seals if there is oil leakage.
   Refer to page 6-3 before installing the timing belt.
                                                                                                            TIMING BELT
                                                           BALANCER BELT                                    ADJUSTING BOLT
                                                           ADJUSTING BOLT                                   10 x 1.25 mm
                                                           10 x 1.25 mm                                     42 N-m (4.3 kgf-m,
                                                           44 N-m (4.5 kgf-m,                               31 Ibf-ft)
                                                           33 Ibf-ft)
                                        TIMING BELT
                                        DRIVE PULLEY
  TIMING BELT                           Replacement, page 6-3
  Inspection, page 6-5
  Adjustment, page 6-5
  Removal, page 6-8
  Installation, page 6-10




   BALANCER BELT
   Inspection, page 6-6
   Adjustment, page 6-7
   Removal, page 6-8
   Installation, page 6-10


     RIGHT UPPER
                                                                                                                      KEY
     COVER

                                                                                                               BALANCER
                                                                                                               BELT DRIVE PULLEY
                                                                                                               Replacement, page 6-3


         LOWER                                                                                                        IDLER PULLEY
         COVER                                                                                                        BRACKET


                                                                                          O-RING           8 x 1.25 mm
                                                                                          Replace.         22 N-m (2.2 kgf-m, 16 Ibf-ft)

                                                                                     6 x 1.0 mm
                                                                                     12 N-m (1.2 kgf-m, 8.7 Ibf-ft)
         6 x 1.0 mm
         12 N-m (1.2 kgf-m,                                                     RUBBER SEAL
         8.7 Ibf-ft)                                                            Replace when damaged
                                                                                or deteriorated.

                                       RUBBER SEALS                     6 x 1.0 mm
                                       Replace when damaged             12 N-m (1.2 kgf-m, 8.7 Ibf-ft)
  PULLEY BOLT                          or deteriorated.
  16 x 1.5 mm
  245 N-m (25.0 kgf-m,
  181 Ibf-ft)
  Replacement, page 6-3       CRANKSHAFT PULLEY                 LEFT UPPER
  Do not use an impact        Replacement, page 6-3             COVER
  wrench when installing.
