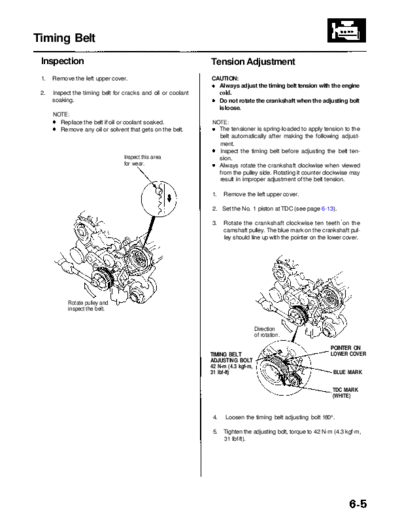

Image preview - the first page of the document



>> Download RL9604S06005A documenatation <<

Text preview - extract from the document

              Main Menu                 Table of Contents


Timing Belt
 Inspection                                                   Tension Adjustment
 1.   Remove the left upper cover.                            CAUTION:
                                                                Always adjust the timing belt tension with the engine
 2.   Inspect the timing belt for cracks and oil or coolant         cold.
      soaking.                                                      Do not rotate the crankshaft when the adjusting bolt
                                                                    is loose.
      NOTE:
        Replace the belt if oil or coolant soaked.            NOTE:
        Remove any oil or solvent that gets on the belt.        The tensioner is spring-loaded to apply tension to the
                                                                belt automatically after making the following adjust-
                                                                ment.
                                                                Inspect the timing belt before adjusting the belt ten-
                                 Inspect this area              sion.
                                 for wear.                      Always rotate the crankshaft clockwise when viewed
                                                                from the pulley side. Rotating it counter clockwise may
                                                                result in improper adjustment of the belt tension.

                                                              1.     Remove the left upper cover.

                                                              2. Set the No. 1 piston at TDC (see page 6-13).

                                                              3.     Rotate the crankshaft clockwise ten teeth on the
                                                                     camshaft pulley. The blue mark on the crankshaft pul-
                                                                     ley should line up with the pointer on the lower cover.




            Rotate pulley and
            inspect the belt.


                                                                                   Direction
                                                                                   of rotation.

                                                                                                                POINTER ON
                                                              TIMING BELT                                       LOWER COVER
                                                              ADJUSTING BOLT
                                                              42 N-m (4.3 kgf-m,
                                                              31 Ibf-ft)                                         BLUE MARK


                                                                                                                 TDC MARK
                                                                                                                 (WHITE)


                                                               4.     Loosen the timing belt adjusting bolt 180
