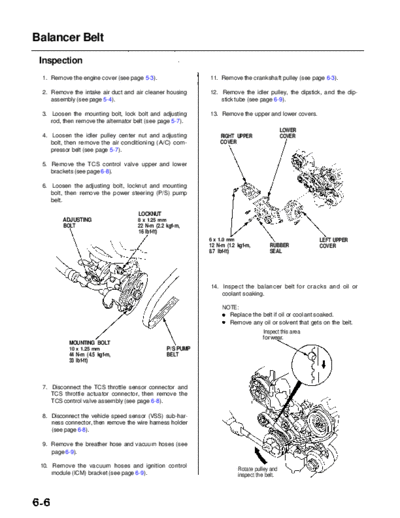

Image preview - the first page of the document
>> Download RL9604S06006A documenatation <<Text preview - extract from the document Main Menu Table of Contents
Balancer Belt
Inspection
1. Remove the engine cover (see page 5-3). 11. Remove the crankshaft pulley (see page 6-3).
2. Remove the intake air duct and air cleaner housing 12. Remove the idler pulley, the dipstick, and the dip-
assembly (see page 5-4). stick tube (see page 6-9).
3. Loosen the mounting bolt, lock bolt and adjusting 13. Remove the upper and lower covers.
rod, then remove the alternator belt (see page 5-7).
LOWER
4. Loosen the idler pulley center nut and adjusting RIGHT UPPER COVER
bolt, then remove the air conditioning (A/C) com- COVER
pressor belt (see page 5-7).
5. Remove the TCS control valve upper and lower
brackets (see page 6-8).
6. Loosen the adjusting bolt, locknut and mounting
bolt, then remove the power steering (P/S) pump
belt.
LOCKNUT
ADJUSTING 8 x 1.25 mm
BOLT 22 N-m (2.2 kgf-m,
16 Ibf-ft)
6 x 1.0 mm LEFT UPPER
12 N-m (1.2 kgf-m, RUBBER COVER
8.7 Ibf-ft) SEAL
14. Inspect the balancer belt for cracks and oil or
coolant soaking.
NOTE:
Replace the belt if oil or coolant soaked.
Remove any oil or solvent that gets on the belt.
Inspect this area
for wear.
MOUNTING BOLT
10 x 1.25 mm P/S PUMP
44 N-m (4.5 kgf-m, BELT
33 Ibf-ft)
7. Disconnect the TCS throttle sensor connector and
TCS throttle actuator connector, then remove the
TCS control valve assembly (see page 6-8).
8. Disconnect the vehicle speed sensor (VSS) sub-har-
ness connector, then remove the wire harness holder
(see page 6-8).
9. Remove the breather hose and vacuum hoses (see
page 6-9).
10. Remove the vacuum hoses and ignition control
Rotate pulley and
module (ICM) bracket (see page 6-9). inspect the belt.
