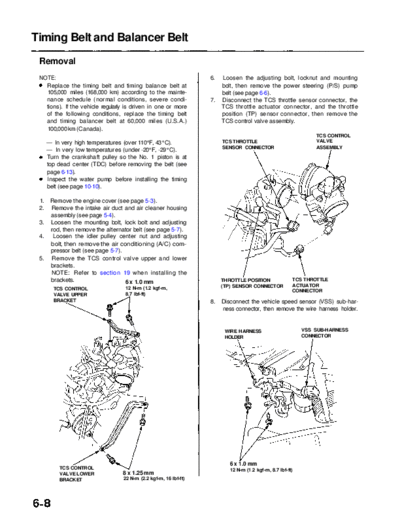

Image preview - the first page of the document



>> Download RL9604S06008A documenatation <<

Text preview - extract from the document

              Main Menu                 Table of Contents



Timing Belt and Balancer Belt
 Removal
 NOTE:                                                            6.   Loosen the adjusting bolt, locknut and mounting
   Replace the timing belt and timing balance belt at                  bolt, then remove the power steering (P/S) pump
   105,000 miles (168,000 km) according to the mainte-                 belt (see page 6-6).
   nance schedule (normal conditions, severe condi-               7.   Disconnect the TCS throttle sensor connector, the
   tions). If the vehicle regularly is driven in one or more           TCS throttle actuator connector, and the throttle
   of the following conditions, replace the timing belt                position (TP) sensor connector, then remove the
   and timing balancer belt at 60,000 miles (U.S.A.)                   TCS control valve assembly.
   100,000 km (Canada).
                                                                                                               TCS CONTROL
      -- In very high temperatures (over 110
