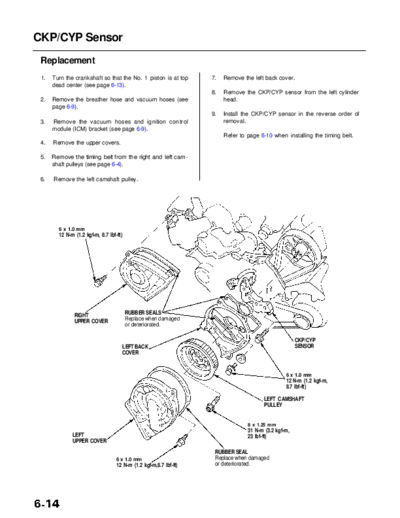

Image preview - the first page of the document
>> Download RL9604S06014A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
CKP/CYP Sensor
Replacement
1. Turn the crankshaft so that the No. 1 piston is at top 7. Remove the left back cover.
dead center (see page 6-13).
8. Remove the CKP/CYP sensor from the left cylinder
2. Remove the breather hose and vacuum hoses (see head.
page 6-9).
9. Install the CKP/CYP sensor in the reverse order of
3. Remove the vacuum hoses and ignition control removal.
module (ICM) bracket (see page 6-9).
Refer to page 6-10 when installing the timing belt.
4. Remove the upper covers.
5. Remove the timing belt from the right and left cam-
shaft pulleys (see page 6-4).
6. Remove the left camshaft pulley.
6 x 1.0 mm
12 N-m (1.2 kgf-m, 8.7 Ibf-ft)
RIGHT RUBBER SEALS
UPPER COVER Replace when damaged
or deteriorated.
CKP/CYP
LEFT BACK SENSOR
COVER
6 x 1.0 mm
12 N-m (1.2 kgf-m,
8.7 Ibf-ft)
LEFT CAMSHAFT
PULLEY
8 x 1.25 mm
31 N-m (3.2 kgf-m,
LEFT 23 Ibf-ft)
UPPER COVER
RUBBER SEAL
6 x 1.0 mm Replace when damaged
12 N-m (1.2 kgf-m,8.7 Ibf-ft) or deteriorated.
