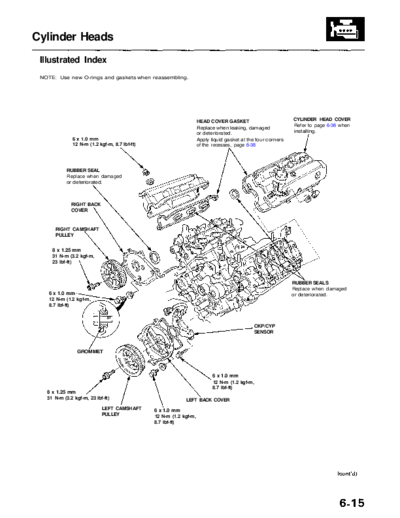

Image preview - the first page of the document
>> Download RL9604S06015A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Cylinder Heads
Illustrated Index
NOTE: Use new O-rings and gaskets when reassembling.
CYLINDER HEAD COVER
HEAD COVER GASKET
Refer to page 6-38 when
Replace when leaking, damaged
installing.
or deteriorated.
6 x 1.0 mm Apply liquid gasket at the four corners
12 N-m (1.2 kgf-m, 8.7 Ibf-ft) of the recesses, page 6-38
RUBBER SEAL
Replace when damaged
or deteriorated.
RIGHT BACK
COVER
RIGHT CAMSHAFT
PULLEY
8 x 1.25 mm
31 N-m (3.2 kgf-m,
23 Ibf-ft)
RUBBER SEALS
Replace when damaged
6 x 1.0 mm or deteriorated.
12 N-m (1.2 kgf-m,
8.7 Ibf-ft)
CKP/CYP
SENSOR
GROMMET
6 x 1.0 mm
12 N-m (1.2 kgf-m,
8.7 Ibf-ft)
8 x 1.25 mm
31 N-m (3.2 kgf-m, 23 Ibf-ft) LEFT BACK COVER
LEFT CAMSHAFT 6 x 1.0 mm
PULLEY 12 N-m (1.2 kgf-m,
8.7 Ibf-ft)
Main Menu Table of Contents
Cylinder Heads
Illustrated Index (cont'd)
CAUTION:
To avoid damage, wait until the engine coolant temperature drops below 100◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
