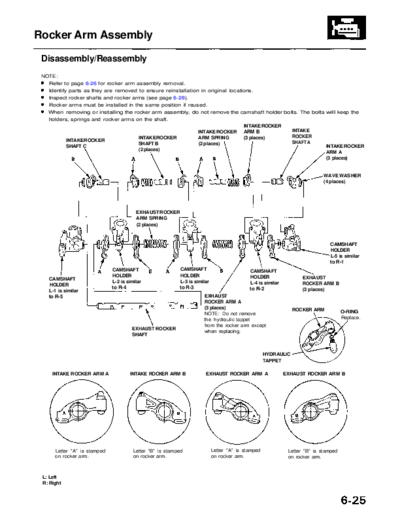

Rocker Arm Assembly

 Disassembly/Reassembly
 NOTE:
   Refer to page 6-26 for rocker arm assembly removal.
   Identify parts as they are removed to ensure reinstallation in original locations.
   Inspect rocker shafts and rocker arms (see page 6-28).
   Rocker arms must be installed in the same position if reused.
   When removing or installing the rocker arm assembly, do not remove the camshaft holder bolts. The bolts will keep the
   holders, springs and rocker arms on the shaft.
                                                                                 INTAKE ROCKER
                                                              INTAKE ROCKER ARM B              INTAKE
                                      INTAKE ROCKER           ARM SPRING         (3 places)    ROCKER
           INTAKE ROCKER                                                                       SHAFT A
                                      SHAFT B                 (2 places)
           SHAFT C                                                                                         INTAKE ROCKER
                                      (2 places)
                                                                                                           ARM A
                                                                                                           (3 places)


                                                                                                                               WAVE WASHER
                                                                                                                               (4 places)




                                         EXHAUST ROCKER
                                         ARM SPRING
                                         (2 places)



                                                                                                                                 CAMSHAFT
                                                                                                                                 HOLDER
                                                                                                                                 L-5 is similar
                                                                                                                                 to R-1
                                                                                                    \
                              CAMSHAFT                     CAMSHAFT                         CAMSHAFT
                              HOLDER                       HOLDER                           HOLDER                     EXHAUST
   CAMSHAFT
                              L-2 is similar               L-3 is similar                   L-4 is similar             ROCKER ARM B
   HOLDER
                              to R-4                       to R-3                           to R-2                     (3 places)
   L-1 is similar
   to R-5                                                             EXHAUST
                                                                      ROCKER ARM A
                                                                      (3 places)                                    ROCKER ARM
                                                                      NOTE: Do not remove                                               O-RING
                                                                      the hydraulic tappet                                              Replace.
                                                                      from the rocker arm except
                                       EXHAUST ROCKER
                                                                      when replacing.
                                       SHAFT



                                                                                                        HYDRAULIC
                                                                                                        TAPPET

     INTAKE ROCKER ARM A              INTAKE ROCKER ARM B              EXHAUST ROCKER ARM A                   EXHAUST ROCKER ARM B




      Letter "A" is stamped             Letter "B" is stamped               Letter "A" is stamped               Letter "B" is stamped
      on rocker arm.                    on rocker arm.                      on rocker arm.                      on rocker arm.



 L: Left
 R: Right
