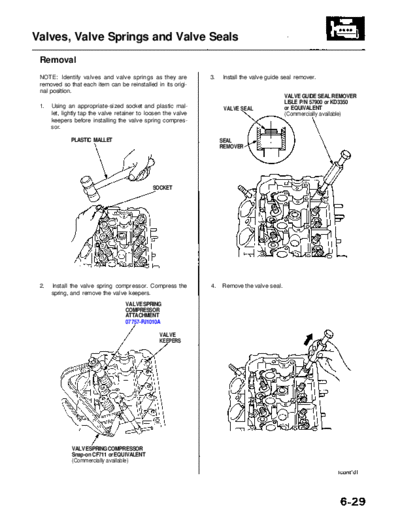

Image preview - the first page of the document



>> Download RL9604S06029A documenatation <<

Text preview - extract from the document

              Main Menu                  Table of Contents


Valves, Valve Springs and Valve Seals
 Removal
 NOTE: Identify valves and valve springs as they are            3.   Install the valve guide seal remover.
 removed so that each item can be reinstalled in its origi-
 nal position.
                                                                                              VALVE GUIDE SEAL REMOVER
                                                                                              LISLE P/N 57900 or KD3350
 1.   Using an appropriate-sized socket and plastic mal-              VALVE SEAL              or EQUIVALENT
      let, lightly tap the valve retainer to loosen the valve                                 (Commercially available)
      keepers before installing the valve spring compres-
      sor.

              PLASTIC MALLET                                         SEAL
                                                                     REMOVER




                                               SOCKET




 2.   Install the valve spring compressor. Compress the         4.   Remove the valve seal.
      spring, and remove the valve keepers.
                                    VALVE SPRING
                                    COMPRESSOR
                                    ATTACHMENT
                                    07757-PJ1010A

                                                 VALVE
                                                 KEEPERS




              VALVE SPRING COMPRESSOR
              Snap-on CF711 or EQUIVALENT
              (Commercially available)
             Main Menu               Table of Contents


Valves, Valve Springs and Valve Seals
 Removal (cont'd)
 5.   Inspect the valves for wear.




      Intake Valve Dimensions
      A Standard (New): 32.90-33.10 mm
                          (1.295-1.303 in)
      B Standard (New): 113.58-113.88 mm
                          (4.472 - 4.483 in)
      C Standard (New): 5.48 - 5.49 mm
                          (0.2157-0.2161 in)
      C Service Limit:    5.45 mm (0.215 in)
      D Standard (New): 0.85- 1.15 mm
                           (0.033 - 0.045 in)
      D Service Limit:    0.65 mm (0.026 in)

      Exhaust Valve Dimensions
      A Standard (New): 27.90-28.10 mm
                         (1.098-1.106 in)
      B Standard (New): 116.03-116.33 mm
                         (4.568 - 4.580 in)
      C Standard (New): 5.45 - 5.46 mm
                         (0.2146 - 0.2150 in)
      C Service Limit:   5.42 mm (0.213 in)
      D Standard (New): 1.35- 1.65 mm
                         (0.053 - 0.065 in)
      D Service Limit:   1.15 mm (0.045 in)
