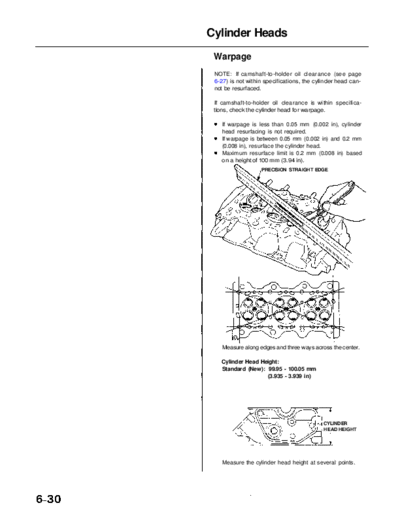

Image preview - the first page of the document
>> Download RL9604S06030A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Cylinder Heads
Warpage
NOTE: If camshaft-to-holder oil clearance (see page
6-27) is not within specifications, the cylinder head can-
not be resurfaced.
If camshaft-to-holder oil clearance is within specifica-
tions, check the cylinder head for warpage.
If warpage is less than 0.05 mm (0.002 in), cylinder
head resurfacing is not required.
If warpage is between 0.05 mm (0.002 in) and 0.2 mm
(0.008 in), resurface the cylinder head.
Maximum resurface limit is 0.2 mm (0.008 in) based
on a height of 100 mm (3.94 in).
PRECISION STRAIGHT EDGE
Measure along edges and three ways across the center.
Cylinder Head Height:
Standard (New): 99.95 - 100.05 mm
(3.935 - 3.939 in)
CYLINDER
HEAD HEIGHT
Measure the cylinder head height at several points.
