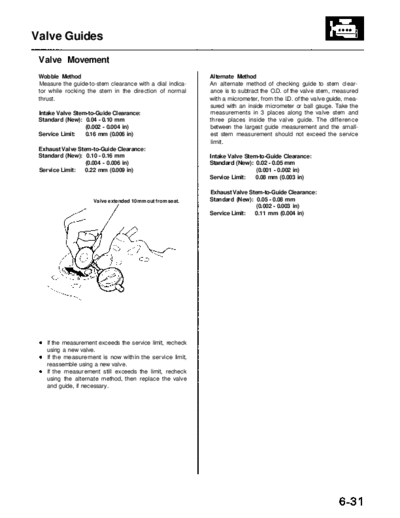

Image preview - the first page of the document



>> Download RL9604S06031A documenatation <<

Text preview - extract from the document

              Main Menu                 Table of Contents


Valve Guides
 Valve Movement
 Wobble Method                                              Alternate Method
 Measure the guide-to-stem clearance with a dial indica-    An alternate method of checking guide to stem clear-
 tor while rocking the stem in the direction of normal      ance is to subtract the O.D. of the valve stem, measured
 thrust.                                                    with a micrometer, from the I.D. of the valve guide, mea-
                                                            sured with an inside micrometer or ball gauge. Take the
 Intake Valve Stem-to-Guide Clearance:                      measurements in 3 places along the valve stem and
 Standard (New): 0.04 - 0.10 mm                             three places inside the valve guide. The difference
                  (0.002 - 0.004 in)                        between the largest guide measurement and the small-
 Service Limit:   0.16 mm (0.006 in)                        est stem measurement should not exceed the service
                                                            limit.
 Exhaust Valve Stem-to-Guide Clearance:
 Standard (New): 0.10 - 0.16 mm                             Intake Valve Stem-to-Guide Clearance:
                  (0.004 - 0.006 in)                        Standard (New): 0.02 - 0.05 mm
 Service Limit:   0.22 mm (0.009 in)                                         (0.001 - 0.002 in)
                                                            Service Limit:   0.08 mm (0.003 in)

                                                            Exhaust Valve Stem-to-Guide Clearance:
                     Valve extended 10 mm out from seat.    Standard (New): 0.05 - 0.08 mm
                                                                             (0.002 - 0.003 in)
                                                            Service Limit:  0.11 mm (0.004 in)




    If the measurement exceeds the service limit, recheck
    using a new valve.
    If the measurement is now within the service limit,
    reassemble using a new valve.
    If the measurement still exceeds the limit, recheck
    using the alternate method, then replace the valve
    and guide, if necessary.
