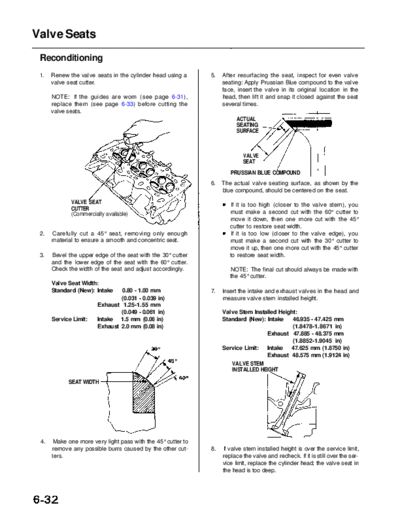

              Main Menu                 Table of Contents


Valve Seats
 Reconditioning
 1.   Renew the valve seats in the cylinder head using a      5.   After resurfacing the seat, inspect for even valve
      valve seat cutter.                                           seating: Apply Prussian Blue compound to the valve
                                                                   face, insert the valve in its original location in the
      NOTE: If the guides are worn (see page 6-31),                head, then lift it and snap it closed against the seat
      replace them (see page 6-33) before cutting the              several times.
      valve seats.
                                                                        ACTUAL
                                                                        SEATING
                                                                        SURFACE



                                                                           VALVE
                                                                           SEAT
                                                                      PRUSSIAN BLUE COMPOUND
                                                              6.   The actual valve seating surface, as shown by the
                                                                   blue compound, should be centered on the seat.

             VALVE SEAT                                               If it is too high (closer to the valve stem), you
             CUTTER
             (Commercially available)                                 must make a second cut with the 60
