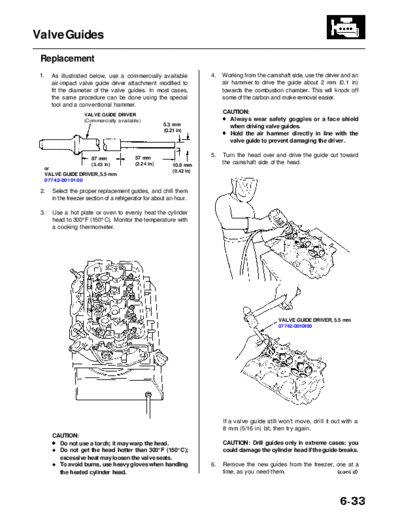

Image preview - the first page of the document



>> Download RL9604S06033A documenatation <<

Text preview - extract from the document

                Main Menu                    Table of Contents


Valve Guides
 Replacement
       As illustrated below, use a commercially available              4.   Working from the camshaft side, use the driver and an
       air-impact valve guide driver attachment modified to                 air hammer to drive the guide about 2 mm (0.1 in)
       fit the diameter of the valve guides. In most cases,                 towards the combustion chamber. This will knock off
       the same procedure can be done using the special                     some of the carbon and make removal easier.
       tool and a conventional hammer.
                    VALVE GUIDE DRIVER
                                                                            CAUTION:
                    (Commercially available)                                  Always wear safety goggles or a face shield
                                                       5.3 mm                 when driving valve guides.
                                                       (0.21 in)
                                                                              Hold the air hammer directly in line with the
                                                                              valve guide to prevent damaging the driver.

                                                                       5.   Turn the head over and drive the guide out toward
                        87 mm              57 mm
                        (3.43 in)          (2.24 in)                        the camshaft side of the head.
                                                           10.8 mm
  or
                                                           (0.42 in)
  VALVE GUIDE DRIVER, 5.5 mm
  07742-0010100

 2.    Select the proper replacement guides, and chill them
       in the freezer section of a refrigerator for about an hour.

 3.    Use a hot plate or oven to evenly heat the cylinder
       head to 300
