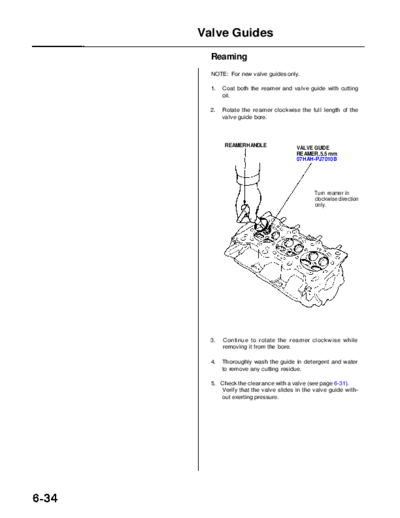

Main Menu   Table of Contents


                                Valve Guides
                                  Reaming
                                  NOTE: For new valve guides only.

                                  1.   Coat both the reamer and valve guide with cutting
                                       oil.

                                  2.   Rotate the reamer clockwise the full length of the
                                       valve guide bore.




                                        REAMER HANDLE             VALVE GUIDE
                                                                  REAMER, 5.5 mm
                                                                  07HAH-PJ7010B




                                                                         Turn reamer in
                                                                         clockwise direction
                                                                         only.




                                  3.   Continue to rotate the reamer clockwise while
                                       removing it from the bore.

                                  4.   Thoroughly wash the guide in detergent and water
                                       to remove any cutting residue.

                                  5. Check the clearance with a valve (see page 6-31).
                                     Verify that the valve slides in the valve guide with-
                                     out exerting pressure.
