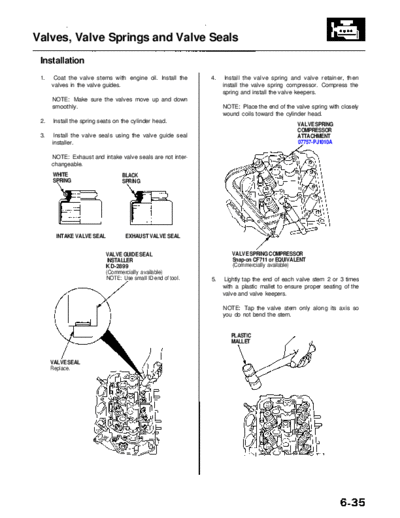

Image preview - the first page of the document



>> Download RL9604S06035A documenatation <<

Text preview - extract from the document

               Main Menu                   Table of Contents


Valves, Valve Springs and Valve Seals
 Installation
 1.    Coat the valve stems with engine oil. Install the       4.    Install the valve spring and valve retainer, then
      valves in the valve guides.                                   install the valve spring compressor. Compress the
                                                                    spring and install the valve keepers.
      NOTE: Make sure the valves move up and down
      smoothly.                                                     NOTE: Place the end of the valve spring with closely
                                                                    wound coils toward the cylinder head.
 2.   Install the spring seats on the cylinder head.
                                                                                                 VALVE SPRING
                                                                                                 COMPRESSOR
 3.    Install the valve seals using the valve guide seal                                        ATTACHMENT
      installer.                                                                                 07757-PJ1010A

      NOTE: Exhaust and intake valve seals are not inter-
      changeable.
      WHITE                       BLACK
      SPRING                      SPRING




        INTAKE VALVE SEAL           EXHAUST VALVE SEAL


                            VALVE GUIDE SEAL                           VALVE SPRING COMPRESSOR
                            INSTALLER                                  Snap-on CF711 or EQUIVALENT
                            KD-2899                                    (Commercially available)
                            (Commercially available)
                            NOTE: Use small ID end of tool.    5.   Lightly tap the end of each valve stem 2 or 3 times
                                                                    with a plastic mallet to ensure proper seating of the
                                                                    valve and valve keepers.

                                                                    NOTE: Tap the valve stem only along its axis so
                                                                    you do not bend the stem.


                                                                       PLASTIC
                                                                       MALLET


      VALVE SEAL
      Replace.
