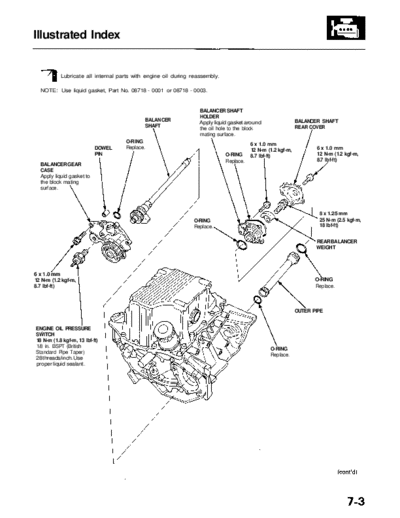

Image preview - the first page of the document
>> Download RL9604S07003A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Illustrated Index
Lubricate all internal parts with engine oil during reassembly.
NOTE: Use liquid gasket, Part No. 08718 - 0001 or 08718 - 0003.
BALANCER SHAFT
HOLDER
BALANCER Apply liquid gasket around BALANCER SHAFT
SHAFT the oil hole to the block REAR COVER
mating surface.
O-RING 6 x 1.0 mm
DOWEL Replace. 12 N-m (1.2 kgf-m, 6 x 1.0 mm
PIN O-RING 8.7 Ibf-ft) 12 N-m (1.2 kgf-m,
Replace. 8.7 Ibf-ft)
BALANCER GEAR
CASE
Apply liquid gasket to
the block mating
surface.
8 x 1.25 mm
O-RING 25 N-m (2.5 kgf-m,
Replace. 18 Ibf-ft)
REAR BALANCER
WEIGHT
6 x 1.0 mm
12 N-m (1.2 kgf-m, O-RING
8.7 Ibf-ft) Replace.
OUTER PIPE
ENGINE OIL PRESSURE
SWITCH
18 N-m (1.8 kgf-m, 13 Ibf-ft)
1/8 in. BSPT (British O-RING
Standard Pipe Taper) Replace.
28 threads/inch. Use
proper liquid sealant.
Main Menu Table of Contents
Illustrated Index
(cont'd)
Lubricate all internal parts with engine oil during reassembly.
NOTE:
