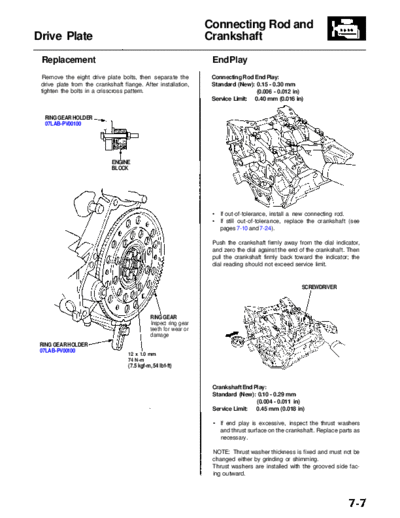

Image preview - the first page of the document



>> Download RL9604S07007A documenatation <<

Text preview - extract from the document

             Main Menu                  Table of Contents
                                                                  Connecting Rod and
Drive Plate                                                       Crankshaft
 Replacement                                                       End Play
 Remove the eight drive plate bolts, then separate the             Connecting Rod End Play:
 drive plate from the crankshaft flange. After installation,       Standard (New): 0.15 - 0.30 mm
 tighten the bolts in a crisscross pattern.                                        (0.006 - 0.012 in)
                                                                   Service Limit: 0.40 mm (0.016 in)


  RING GEAR HOLDER
  07LAB-PV00100




                             ENGINE
                             BLOCK
