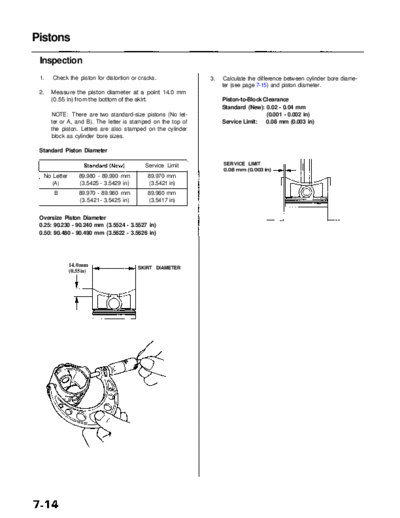

Image preview - the first page of the document
>> Download RL9604S07014A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Pistons
Inspection
1. Check the piston for distortion or cracks. 3. Calculate the difference between cylinder bore diame-
ter (see page 7-15) and piston diameter.
2. Measure the piston diameter at a point 14.0 mm
(0.55 in) from the bottom of the skirt. Piston-to-Block Clearance
Standard (New): 0.02 - 0.04 mm
NOTE: There are two standard-size pistons (No let- (0.001 - 0.002 in)
ter or A, and B). The letter is stamped on the top of Service Limit: 0.08 mm (0.003 in)
the piston. Letters are also stamped on the cylinder
block as cylinder bore sizes.
Standard Piston Diameter
Service Limit SERVICE LIMIT
0.08 mm (0.003 in)
No Letter 89.980 - 89.990 mm 89.970 mm
(A) (3.5425 - 3.5429 in) (3.5421 in)
B 89.970 - 89.980 mm 89.960 mm
(3.5421- 3.5425 in) (3.5417 in)
Oversize Piston Diameter
0.25: 90.230 - 90.240 mm (3.5524 - 3.5527 in)
0.50: 90.480 - 90.490 mm (3.5622 - 3.5626 in)
14.0 mm
SKIRT DIAMETER
(0.55 in)
