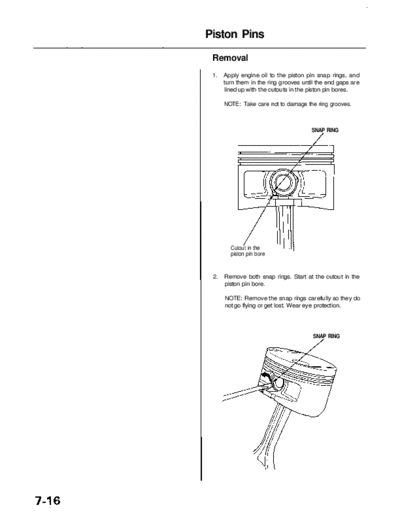

Image preview - the first page of the document
RL9604S07016B


>> Download RL9604S07016B documenatation <<

Text preview - extract from the document
Main Menu   Table of Contents


                                Piston Pins
                                 Removal
                                 1.   Apply engine oil to the piston pin snap rings, and
                                      turn them in the ring grooves until the end gaps are
                                      lined up with the cutouts in the piston pin bores.

                                      NOTE: Take care not to damage the ring grooves.



                                                                       SNAP RING




                                        Cutout in the
                                        piston pin bore



                                 2.   Remove both snap rings. Start at the cutout in the
                                      piston pin bore.

                                      NOTE: Remove the snap rings carefully so they do
                                      not go flying or get lost. Wear eye protection.




                                                                        SNAP RING
               Main Menu              Table of Contents




3.   Heat the piston and connecting rod assembly to
     approximately 158
