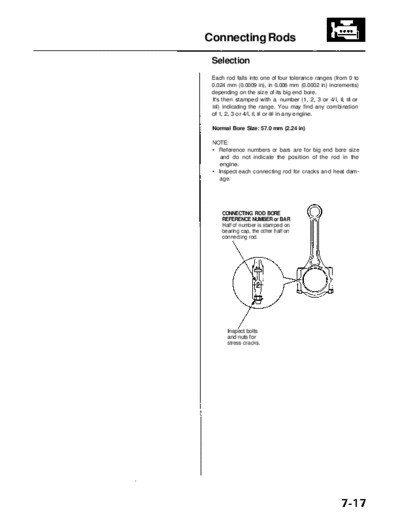

Image preview - the first page of the document



>> Download RL9604S07017A documenatation <<

Text preview - extract from the document

Main Menu   Table of Contents


                                Connecting Rods
                                 Selection
                                 Each rod falls into one of four tolerance ranges (from 0 to
                                 0.024 mm (0.0009 in), in 0.006 mm (0.0002 in) increments)
                                 depending on the size of its big end bore.
                                 It's then stamped with a number (1, 2, 3 or 4/I, Il, IIl or
                                 IIIl) indicating the range. You may find any combination
                                 of 1, 2, 3 or 4/I, Il, IIl or IIIl in any engine.

                                 Normal Bore Size: 57.0 mm (2.24 in)

                                 NOTE:
